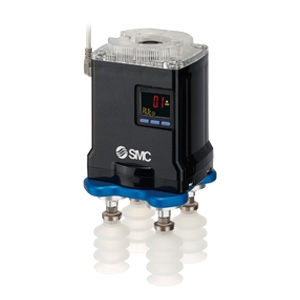

ZXPE5, Electric Vacuum Gripper for Collaborative Robots

Description

The ZXPE5 series is a lightweight and compact vacuum gripper that does not require an air source due to built-in vacuum pump. Energy-saving operation possible via automatic/manual modes. One of the notable options include the FDA compliant cup material. The unit includes connector, mounting flange, atmospheric release valve, integrated vacuum pump, and optional tool changer. - Integrated vacuum ejector, air supply/release valve, pressure sensor, and cups - Cup shape variations: flat, flat with rib, bellows, thin flat, multi-stage bellows, 2.5 bellows, 5.5 stage bellows or without cup - Cup material: NBR, silicone rubber, urethane rubber, FKM, FDA compliant silicone rubber - Cup diameter sizes (mm): 8, 10, 13, 16, 20, 25, 30, 32 - Compatible with Universal Robots, Omron/Techman, Yaskawa, and Fanuc collaborative robots. - Standard ISO9409-4-50-M6
