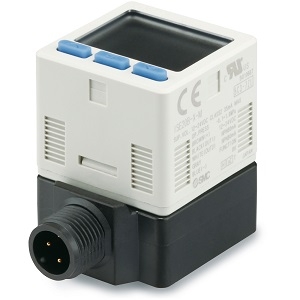

ZSE20B(F)-L-S, Digital Vacuum Sensor, Integrated M12 Connection, IO-Link

Description

ZSE20B(F)-L-S is a digital vacuum sensor with all the standard features of the ZSE20B(F), while integrating an M12 connection and supporting the IO-Link communication protocol. When paired with an IO-Link master, measured values and settings can be accessed from the HMI screen of a PLC. ZSE20B(F)-L-S incorporates IO-Link version 1.1 and COM2 speed. 16-bit process data include 2 output bits for set points, a diagnosis bit, and 13 bits for the measured pressure value. The 3-screen, 3-color display shows the instantaneous reading in red or green, and the setting label and its numerical value in orange. ZSE20B(F)-L is UL/CSA, CE and RoHS compliant, with an IP65 enclosure rating. - IO-Link enabled sensor for wet or dusty environments, with an IP65 rating - 3 setting modes: 3-step, simple, function selection - 7 displayable units: MPa, kPa, kgf/cm2, bar, psi, inHg, mmHg - 1 switch ouput (selectable NPN or PNP) - IO-Link mode: 16-bit digital process data - • SIO mode: 1 switch output (selectable NPN or PNP) - M5 female, R1/8 male or 1/8 NPT piping port - Bracket or panel mounting options
