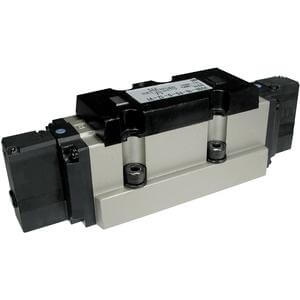

VS*8-10 (for USA), ISO Interface Solenoid Valve

Description

VSS/VSR  size 1, 2 & 3 are plug-in, base mounted interface valves conforming to ISO standards. The valve design offers maximum flexibility and is available in either a high flow rubber seal (model VSR), or matched ground spool and sleeve (model VSS). The lateral plug-in style manifold makes it easy to increase or decrease the manifold stations without wiring work.  In addition, SMC now offers a light weight, large capacity mini ISO valve (size 01). - Fluid: air, inertia gas - Maximum operating pressure: 1.0MPa - Minimum operating pressure: 0.1MPa - Flow rate: Cv 5.6 - Coil rated voltage: 12, 24VDC - Rating: IP67, NEMA4 Hose Down
