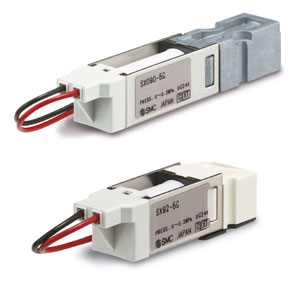

SX90/090, 2/3 Port Direct Operated Poppet Style Solenoid Valve for Air and Nitrogen

Description

SX90 and SX090 are low profile 2/3 Port Direct Operated Poppet Style Solenoid Valves for Air and Inert Gases.  The 2 port SX90 can provide large flow rate of 45 L/min from its compact body.  The 3 port SX090 can provide large flow rate of 90 L/min from its compact body.  Example applications for SX90 and SX090 are blood pressure measuring device, portable oxygen concentrator, chip mounter, air blow and sorting. - 2-port normally closed & universal and 3-port universal actuation type - Operating pressure: -100 kPa to 0.2 MPa - Flow rate: max 90 L/min (3-port) - Enclosure: IP40 - Voltage: 12 VDC, 24 VDC - Available with power saving circuit to hold the actuation: 0.7W during holding
