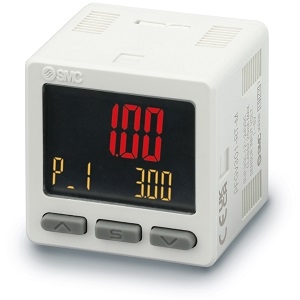

PFGV301, Digital Flow Monitor, 3-Screen 3-Color, IP40, for PFMV5 Sensors

Description

PFGV301 is a monitor with display optimized for the low flow ranges of the PFMV5 remote sensors.  This model improves upon the previous legacy monitor with the 3-screen 3-color display.  View the sensor's measured value in the primary screen while viewing a variety of secondary data in the sub-screens, such as the switch set point value or a peak or bottom value.  Alternately, assign a text description for the sensor's line or location.  Additional functions are available for power saving, security, copying settings external input and more.  PFGV301 is IP40 rated and CE compliant. - 7 selectable flow ranges (units selectable) - Analog sensor input: 1-5VDC - Analog output, monitor: 0-10VDC (with 24VDC power supplied), 1-5VDC or 4-20mA - Switch ouput modes: Hysteresis, window comparator, error, and OFF (NPN / PNP selectable) - Display and analog output accuracy: ±0.5% F.S. - Repeatability: ±0.1% F.S. (display), ±0.3% F.S. (analog output)
