LEY32S3A-300-R5A2H

Description

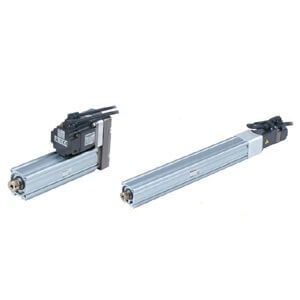

The LEY rod is suitable for push, pull, lift and press applications.  Motor mounting options accommodate the machine's space constraints.  Multiple actuator mounting options increase adaptability.  The AC servo motor is capable of higher speed, acceleration, and pushing force compared to the DC motor version.  AC servo motors are available with incremental or absolute encoder.  Optional drivers include pulse input and various communication protocols including Ethernet.   - Body sizes: 25, 32 - Maximum work load: 60 kg (horizontal); 46 kg (vertical) - Maximum pushing force: 736 N - Maximum stroke: 500 mm - Positioning repeatability: ±0.02mm - Encoder resolution: 17-bit (S motor), 22-bit (T motor), 20-bit (V motor)
