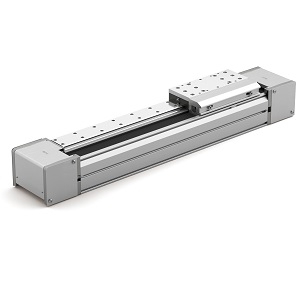

LET-X11, Electric Actuator, Large Load Belt Slider, Motorless

Description

The LET-X11 is available in a motorless type, permitting the mounting of an AC servo motor other than the standard chosen by SMC. 13 motor series from 9 manufacturers are compatible with the mounting. Manufacturers include Mitsubishi, Yaskawa, Nidec Sankyo, Keyence, Delta, Sanyo Denki, Fanuc, Fuji and Anca Motion. - Body sizes: 80, 100 - Max. horizontal workload, kg: 75 (size 80); 240 (size 100) - Max. vertical workload, kg: 70 (size 80); 200 (size 100) - Max. speed, mm/s: 5,000 - Max. acceleration / deceleration, mm/s2: 50,000 - Stroke range, mm: 300 to 3000 (see catalog for increments) - Positioning repeatability, mm: ±0.08
