LERH30K-1-S1CE17

Description

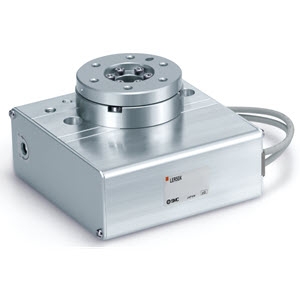

The LER rotary electric actuators feature a rotating worktable positioned above an enclosure for the motor and drivetrain. Three different motor/table sizes are available, with each size offering a basic and high torque variation. Additionally, each size offers four rotating angle options, including 90°, 180°, 310 / 320°, and continuously rotating. - Body sizes: 10, 30, 50 - Rotation angles: 360° continuous - Maximum torque: 6.6 N•m - Positioning repeatability: ±0.05° (±0.01° at end with external stopper) - Backlash: ±0.5°
