LEHZ10LK2-4B-R3

Description

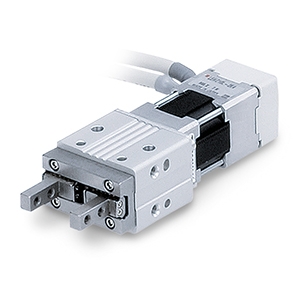

The LEHZ is the most common electric gripper, with the most sizes. The motor drives a slide screw coupled to a lever assembly. The levers open and close the fingers, which follow a linear guide for alignment and stability. The narrow fingers are 12 to 36 mm long, with several optional tool mounting arrangements. A flat finger option is also available. - Body sizes: 10, 16, 20, 25, 32, 40 - Compact motor option available: 10, 16, 20, 25 - Stroke range: 4 to 30 mm - Gripping force range: 2 to 210 N - 3 finger mounting options for custom tooling - Manual adjustment screw for moving fingers with power off
