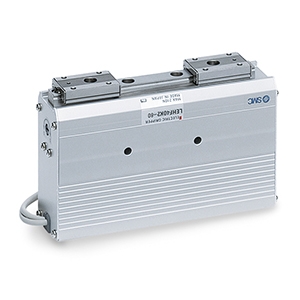

LEHF32K2-64-R5C917

Description

The LEHF gripper uses a belt driven slide shaft to open and close the fingers. The low profile, flat fingers follow a linear guide for alignment and stability. The body and drive construction permit much longer strokes than the LEHZ, suitable for gripping larger items without excessive moment loading. - Body sizes: 10, 20, 32, 40 - Stroke range: 16 to 40 mm (basic); 32 to 80 mm (long) - Gripping force range: 3 to 180 N - Low profile fingers - Manual adjustment screw for moving fingers with power off
