LEFB32T-700-S3C917

Description

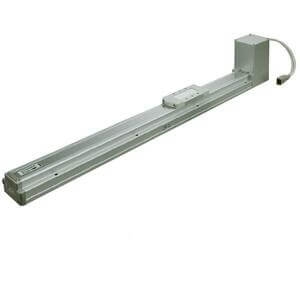

An LEFB slider, or rodless, type electric actuator features a load mounting platform situated above a belt drive. A flexible seal band permits platform movement while preventing grease and foreign matter from entering the drive. Advantages include shorter overall length than rod types, plus longer strokes and higher speeds than ball screw drives. - Body sizes: 16, 25, 32 - Maximum speed: 2000 mm/s - Maximum stroke: 2000 mm - Positioning repeatability: ±0.1 mm - Motor types: high load step motor or high speed servo motor
