LE2FS, High Performance Slide for Manifold Controller

Description

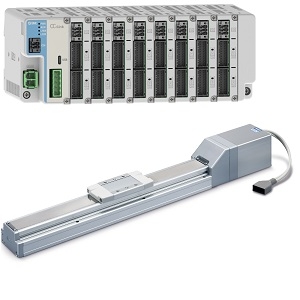

LE2FS is a ballscrew slider with a high performance motor and batteryless absolute encoder that is compatible with the JXD1-M manifold controller. Up to 16 axes can be connected.  LE2FS differs from LEFS by having a different cable connector and no compatibility with JXC controllers.  LE2FS also offers a low speed ballscrew on all sizes.  LE2FS offers a range of pushing forces not previously specified for an LEFS slider.  LE2FS consumes less power while delivering equivalent or improved performance. The JXD1-M manifold controller can detect the actuator type, size and stroke when connected. The controller and cables are ordered separately, simplifying the part number. - Body sizes: 16, 25, 32, 40 - Stroke range: 50 to 1200mm in 50mm increments - Maximum work load: 80 kg (horizontal); 40 kg (vertical) - Maximum speed: 1200mm/s (H lead, size 25) - Maximum acceleration: 10,000 mm/s² (horizontal); 5,000 mm/s² (vertical) - Positioning repeatability: ±0.015mm (Lead H: ±0.02mm) - Motor type: 24 VDC step motor with battery-less absolute encoder
