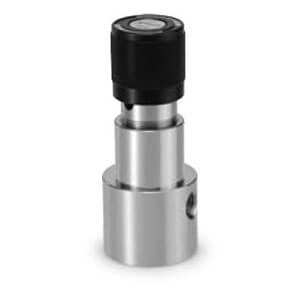

KT12, Single Stage Regulator, High Flow

Description

The KT10 and KT12 series are regulators used in gas delivery systems to reduce the pressure to a lower delivery (outlet) pressure.  These regulators are available with a self-relieving (venting) option, which vents process gas through the regulator cap directly into the atmosphere, or a non-relieving (non-venting) option, which must be used in combination with hazardous gases. - Inlet pressure: max. 6000 psig (41.4 MPa) - Delivery pressure: max. 2500 psig (17.2 MPa) - Body material: stainless steel or brass - Self relieving or non-relieving available - Piston sensing element
