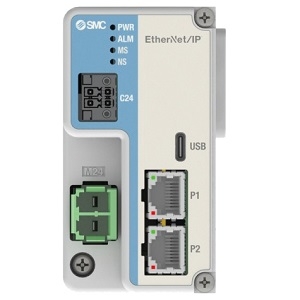

JXD1-MGW Gateway for Manifold Controller

Description

The JXD1-MGW gateway coordinates functions between the PLC and the drivers for LE2 actuators.  It is one of three required components of the manifold controller system, together with 1 or more drivers and a termination unit.  The gateway features separate connections for control and motor power supply as well as the fieldbus.  Connect a PC to the gateway unit for setting step data and parameters using a USB-C cable. The left direct or DIN rail bracket mounts to the rear.  Note that the part number can include the termination unit, or it can be ordered separately.  The unit will include both power supply plugs.   - Fieldbus Protocols: CC-Link, EtherNet/IP - Configuration Software: ACT-Connected, free to download - Operation Modes: Direct Numerical, Step Instruction, Simple Direct Value, IO - LED Display: Power, Alarm, Gateway Status, Communication Status - Mounting Options: Direct or DIN Rail - Ambient Temperature Range: 0 to 55°C - Power Supply: 24 VDC ±10%
