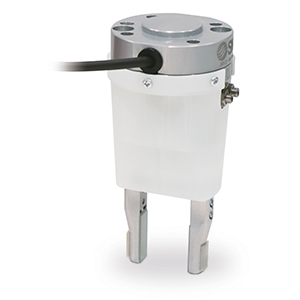

JMHZ2-X7400B, Air Gripper Unit for Collaborative Robots

Description

JMHZ-X7400B is a pneumatic 2-finger gripper designed for collaborative applications (cobot).  It provides plug & play configuration for immediate use with URCap programming.  Integrated solenoid valve and speed adjustment provides simple installation and setup, requiring only 1 air supply tube and M8 connections. - Bore size: 16mm - Compatible with UR3(e), UR5(e), UR10(e) and UR16(e) - Weight: 430g (15.2oz) - Gripping force: External: 32.7 N, Internal: 43.5 N - Action: Double Acting - Opening/Closing Stroke: 10mm - Standards: ISO9409-1-50-4-M6
