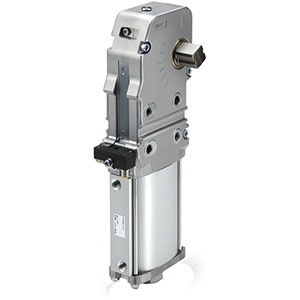

CKZ5N, Aluminum Body NAAMS Power Clamp Cylinder, Large Port Orifice Specification

Description

CKZ5N power clamp conforms to the NAAMS standard. The improved design reduced weight by up to 27% with aluminum body. Bottom unlocking mechanism improves the manual lock release operability. The arm opening angle ranges from 15° to 135°and can be easily changed by replacing the stopper body. Available in 50 and 63 bore sizes. The operating time for arm opening angles of 15° to 90° can be set to 0.6 s. - Compiles with NAAMS standard (CKZ5N) - 9 opening angles: 15, 30, 45, 60, 75, 90, 105, 120, 135 - Easier mechanism unlocking - Space-saving and lightwieght - High clamping force
