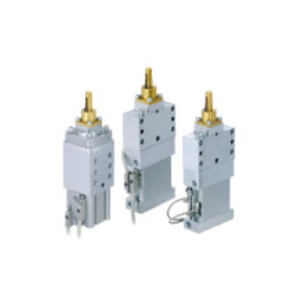

C(L)KQG*, Pin Clamp Cylinder, Compact Type

Description

SMC's pin clamp cylinder series C(L)KQG/P was designed with 4 body types for a broad range of installation conditions.  There are 55 types of guide pins available and an optional locking mechanism.  C(L)KQG/P series  has positioning and clamping at one time!  Precision adjustment of clamping height is possible by choosing the with-shim type.  Adjustment range: 0.5 to 3mm. - Magnetic field resistant auto switch mounting type - High or Low clamping heights available - 29mm width - Compact design makes it applicable to a broad range of workpieces - Round and diamond guide pins - 32mm bore size
