CDQMA80-50-M9NV

Description

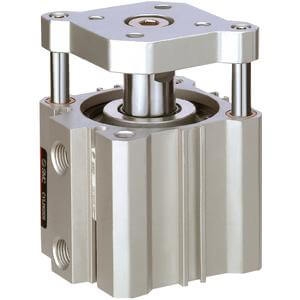

The CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100mm bore sizes. Non-rotating accuracy is 0.2 or less.  Series CQM allows a workpiece to be mounted directly to the tooling plate.  Auto switches are mountable/removable even when the plate is retracted. - Guide rod type compact cylinder - Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100 - Standard strokes (mm): 5 to 100 - 4 times the lateral load resistance of the CQ2K - Non-rotating accuracy 0.2 or less
