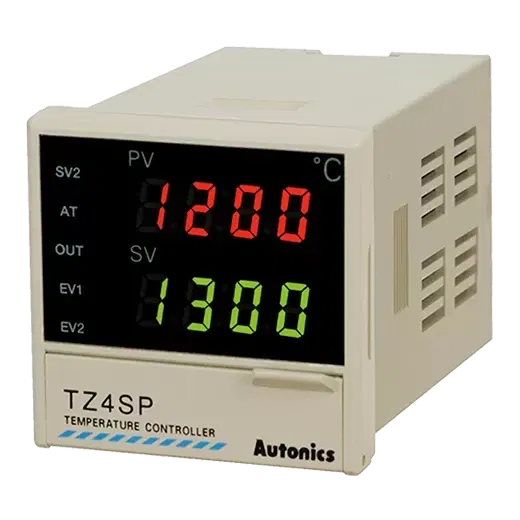

TZ4SP-14C - Dual-Speed PID Temperature Controllers with Protection Cover (Discontinued)
Temperature Controller
- SKU:
- TZ4SP-14C
- Category:
- Proximity Sensors
- Brand:
$133.22
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 205g(approx. 144g)
- LBA setting
- 1 to 999 sec
- Ramp setting
- Ramp Up, Ramp Down: 1 to 99 min each
- Integral time
- 0 to 3,60 sec
- Option output
- Event 1
- Power voltage
- 100-240VAC50z
- Control method
- OFF control, P, PI, PD, PIDF, PIDS control
- Control output
- Current output(DC4-20mA)
- Control period
- 1 to 120 sec
- Display method
- 4-digit 7-segment LED
- Sampling cycle
- 50ms
- Derivative time
- 0 to 3,60 sec
- Display accuracy
- F.S � 0.3% or 3, select the higher one
- Proportional band
- 0.0 t50.0%
- Input specification
- Thermocouple: K(CA), J(IC), E(CR), T(CC), R(PR), S(PR), N(NN), W(TT)RTD: D50?, J50?Analog: 1-5VDC (=), 010VDC (=), DC4-20mA
- Alarm output hysteresis
- 1 t50 (0.1 t50.0) variable
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- 10 t50, storage: -20 to 60
Description
The TZ4SP-14C is a dual-speed PID temperature controller with a protective front cover, housed in a 48�48 mm DIN format. The dual-speed control algorithm provides fast initial heating followed by precision approach to setpoint, reducing thermal overshoot in processes with slow thermal response. The protective cover shields the front panel buttons and display from contamination in dusty or wet environments. Note: this model has been discontinued and is superseded by updated Autonics temperature controller series.
