TX4S-A4S - LCD Display PID Temperature Controllers
Temperature Controller
- SKU:
- TX4S-A4S
- Category:
- Proximity Sensors
- Brand:
$132.47
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 146.1g(approx. 86.7g)
- Manual reset
- 0.0 t50.0%
- Integral time
- 0 to 9999 sec
- Option output
- Alarm , Transmission(DC4-20mA)
- Power voltage
- 100-240VAC50z
- Control method
- OFF, P, PI, PD, PID
- Control output
- SSR drive(12VDC (=)) [OFF, phase, cycle]
- Control period
- 0.5 to 120.0 sec
- Display method
- 4-digit 11-segment LCD
- Sampling cycle
- 50s
- Derivative time
- 0 to 9999 sec
- Insulation type
- Double insulation (mark: (INS), dielectric strength between primary circuit and secondary circuit: 3kV)
- Proportional band
- 0.1 to 999.9
- Input specification
- Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)RTD: D50?, Cu50
- Display accuracy_RTD
- At room temperature(23�5):(PV �0.3% or �1, select the higher one) �1-digitOut of room temperature:(PV �0.5% or �2, select the higher one) �1-digit
- Protection structure
- IP50front panel)
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Display accuracy_Thermocouple
- At room temperature(23�5):(PV �0.3% or �1, select the higher one) �1-digitOut of room temperature:(PV �0.5% or �2, select the higher one) �1-digit
- Environment_Ambient temperature
- 10 t50, storage: -20 to 60
- Hysteresis(adjustable sensitivity)
- 1 t50(0.1 t500) variable
Description

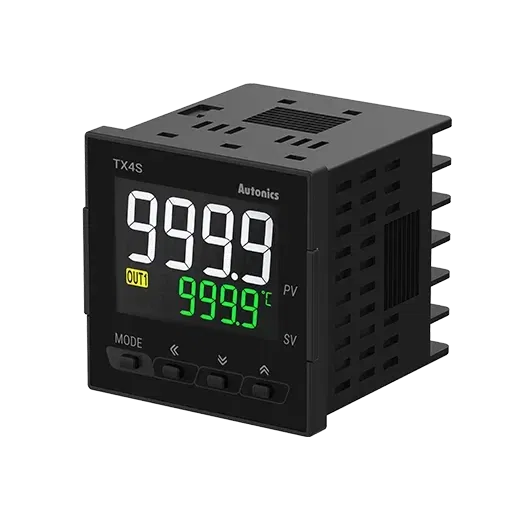

The TX4S-A4S is an LCD display PID temperature controller with analog input and SSR drive output in a 48�48 mm compact format. The analog input capability accepts 4�20 mA or 0�10V process signals in addition to thermocouple and RTD inputs, expanding its applicability to pressure, flow, and level control with PID algorithms. The LCD display enhances readability and the SSR drive output supports high-frequency heater switching for precise process control.
