TX4S-14S - LCD Display PID Temperature Controllers
Temperature Controller
- SKU:
- TX4S-14S
- Category:
- Proximity Sensors
- Brand:
$101.53
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 146.1g(approx. 86.7g)
- Manual reset
- 0.0 t50.0%
- Integral time
- 0 to 9999 sec
- Option output
- Alarm 1
- Power voltage
- 100-240VAC50z
- Control method
- OFF, P, PI, PD, PID
- Control output
- SSR drive(12VDC (=)) [OFF, phase, cycle]
- Control period
- 0.5 to 120.0 sec
- Display method
- 4-digit 11-segment LCD
- Sampling cycle
- 50s
- Derivative time
- 0 to 9999 sec
- Insulation type
- Double insulation (mark: (INS), dielectric strength between primary circuit and secondary circuit: 3kV)
- Proportional band
- 0.1 to 999.9
- Input specification
- Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)RTD: D50?, Cu50
- Display accuracy_RTD
- At room temperature(23�5):(PV �0.3% or �1, select the higher one) �1-digitOut of room temperature:(PV �0.5% or �2, select the higher one) �1-digit
- Protection structure
- IP50front panel)
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Display accuracy_Thermocouple
- At room temperature(23�5):(PV �0.3% or �1, select the higher one) �1-digitOut of room temperature:(PV �0.5% or �2, select the higher one) �1-digit
- Environment_Ambient temperature
- 10 t50, storage: -20 to 60
- Hysteresis(adjustable sensitivity)
- 1 t50(0.1 t500) variable
Description

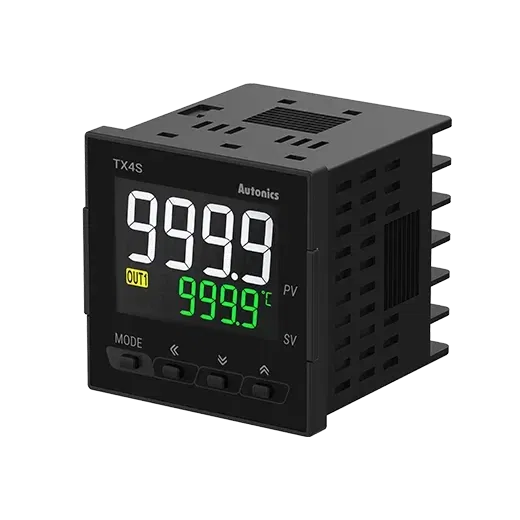

The TX4S-14S is an LCD display PID temperature controller in a 48�48 mm DIN format with SSR drive output. The LCD display provides clear readout of process temperature and setpoint with improved visibility compared to LED displays in bright environments. SSR drive output enables pulse-width modulation control of heating elements through external solid state relays, providing smooth, precise temperature regulation in plastic processing, food industry, and laboratory applications.
