TM4-N2RB - Modular Multi-Channel PID Temperature Controllers
Temperature Controller
- SKU:
- TM4-N2RB
- Category:
- Proximity Sensors
- Brand:
$384.12
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Hysteresis
- 1 t50 (0.1 t50)
- RS485 Comm.
- Modbus ASCIIRTU
- Manual reset
- 0.0 t50.0%
- Integral time
- 0 to 9999 sec
- Power voltage
- 24VDC (=) 10%
- Control method
- OFF, P, PI, PD, PID
- Control output
- 250VAC~ 3A 1a,30 VDC(=) 3A 1a
- Control period
- 0.1 to 120.0 sec
- Display method
- Non-display
- Sampling cycle
- 100ms(4-CH synchronous sampling)
- Derivative time
- 0 to 9999 sec
- Insulation type
- Double insulation or reinforced insulation(mark: (INS), dielectric strength between the measuring input part and the power part: 1kV)
- Power consumption
- 5 W (for Max. load)
- Proportional band
- 0.1 to 999.9
- Weight_Basic module
- Approx. 239g(approx. 174g)
- Number of input channels
- 4-channel
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- 10 t50, storage: -20 to 60
Description

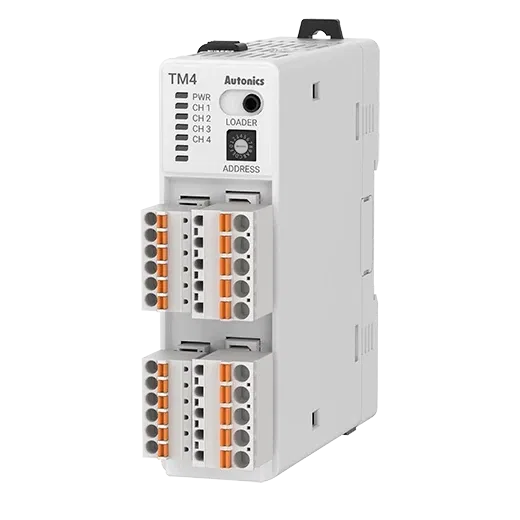

The TM4-N2RB is a modular multi-channel PID temperature controller module with 2 relay outputs (type B thermocouple input), designed to be stacked with other TM4 modules for scalable multi-zone temperature control. The modular architecture reduces panel space and wiring compared to individual single-channel controllers. Suitable for multi-zone plastic extrusion, injection molding, and industrial oven applications requiring coordinated zone-by-zone temperature management.
