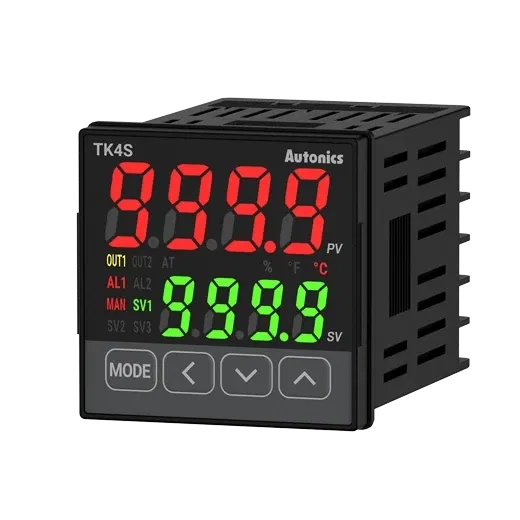

TK4S-R4SN - High Performance PID Temperature Controllers

Specifications

Weight

Approx. 150(approx.105g)

Manual reset

0.0 t50.0%

Option input

CT, Digital(DI-1)

Integral time

0 to 9999 sec

Option output

Alarm 1, Transmission(DC4-20mA)

Power voltage

100-240VAC50z

Control method

OFF, P, PI, PD, PID

Control period

Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec

Display method

4-digit 7-segment LED

Sampling cycle

50s

Derivative time

0 to 9999 sec

Insulation type

Double insulation or reinforced insulation(mark: (INS), dielectric strength between the measuring input part and the power part: 2kV)

Control output 1

SSR drive(11VDC (=)) [OFF, phase, cycle]

Proportional band

0.1 to 999.9(0.1 to 999.9%)

Input specification

Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: D50?, DPt50, J50?, 50?, Cu50, Nikel 120?Analog: 50mV, 0-5V, 1-5V, 010V0-20mA, 4-20mA

Display accuracy_RTD

At room temperature(23�5):(PV �0.3% or �1, select the higher one) �1-digitOut of room temperature:(PV �0.5% or �2, select the higher one) �1-digit

Protection structure

IP65ront panel)

Display accuracy_Analog

At room temperature(23?�5?): �0.3% F.S. �1-digitOut of range of room temperature: �0.5?% F.S. �1-digit

Display accuracy_CT input

�5% F.S. �1-digit

Environment_Ambient humidity

35 to 85% RH, storage: 35 to 85% RH

Display accuracy_Thermocouple

At room temperature(23?�5):(PV �0.3% or �1, select the higher one) �1-digitOut of room temperature:(PV �0.5% or �2, select the higher one) �1-digit

Environment_Ambient temperature

10 t50, storage: -20 to 60

Hysteresis(adjustable sensitivity)

RThermocouples: 1 t50(0.1 t50.0) variable Analog: 1 t50-digit
