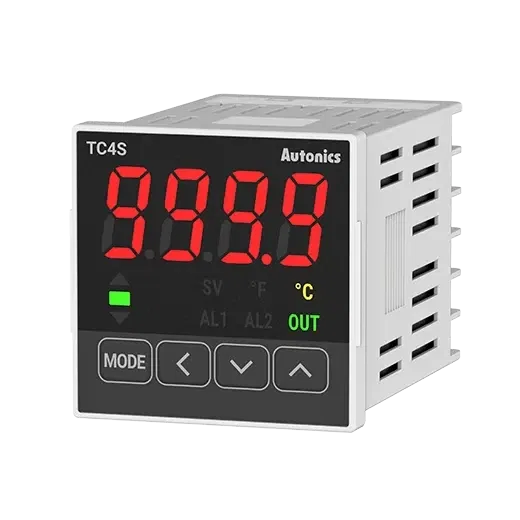

TC4S-14R - Economical Single Display PID Temperature Controllers
Temperature Controller
- SKU:
- TC4S-14R
- Category:
- Proximity Sensors
- Brand:
$83.27
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Size
- DIN W48�H48mm
- Weight
- Approx. 141g(approx. 94g)
- Manual reset
- 0.0 t50.0%
- Integral time
- 0 to 9999 sec
- Option output
- Alarm 1
- Power voltage
- 100-240VAC50z
- Control method
- OFF, P, PI, PD, PID
- Control output
- Relay (250AC~ 3A) or SSR drive (12VDC (=)) [OFF, phase, cycle]
- Control period
- 0.5 to 120.0 sec
- Display method
- 4-digit 7-segment LED
- Sampling cycle
- 100ms
- Derivative time
- 0 to 9999 sec
- Insulation type
- Double insulation or reinforced insulation(mark: (INS), dielectric strength between the measuring input part and the power part: AC power 2kV, AC Power 1kV)
- Proportional band
- 0.1 to 999.9
- Input specification
- Thermocouple: K(CA), J(IC), L(IC)RTD: D50, Cu50
- Display accuracy_RTD
- At room temperature(23�C � 5�C):(PV � 0.5% or �1�C, select the higher one) � 1-digitOut of room temperature range:(PV� 0.5% or �2�C, select the higher one)� 1-digit
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Display accuracy_Thermocouple
- At room temperature(23�C � 5�C):(PV � 0.5% or �1�C, select the higher one) � 1-digitOut of room temperature range:(PV� 0.5% or �2�C, select the higher one)� 1-digit
- Environment_Ambient temperature
- 10 t50, storage: -20 to 60
- Hysteresis(adjustable sensitivity)
- 1 t50(0.1 t500) variable
Description
The TC4S-14R is an economical single-display PID temperature controller in a 48�48 mm DIN panel format with relay output. It accepts thermocouple and RTD temperature sensor inputs and provides auto-tuning PID control for maintaining precise setpoint temperatures. The relay output switches heating or cooling loads, and the single-display format shows the process temperature for straightforward temperature monitoring in ovens, dryers, and basic thermal process equipment.
