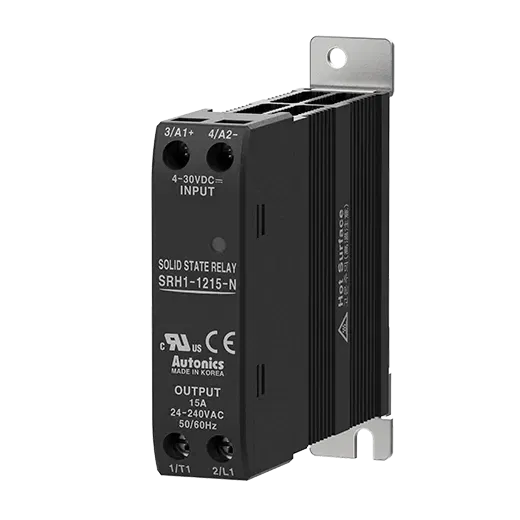

SRH1-1215-N - Single-Phase Solid State Relays (Integrated Heatsink, Top/Bottom Terminal Type)
Solid State Relay
- SKU:
- SRH1-1215-N
- Category:
- Proximity Sensors
- Brand:
$47.81
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 298g(approx. 225g)
- Function
- Zero cross turn-on
- Heatsink
- Heatsink
- Control phase
- Single-phase
- Mounting type
- Panel, DIN rail
- Rated load current
- 15A
- Rated load voltage
- 24-240VAC~ (50z)
- Dielectric strength
- 250VAC50z 1 min (Input-Output, InpuutputCase)
- Rated input voltage
- 430VDC (=)
- Environment_Ambient humidity
- 45 to 85% RH, storage: 45 to 85% RH
- Environment_Ambient temperature
- 30 to 80?(inCase of the rated input voltage 90-240VAC~: -20 to 70, storage30 t50?(The rated load current capacity is diferent depending on ambient temperature. Refer to '? SSR Derating Curve'.)
Description
The SRH1-1215-N is a single-phase solid state relay with an integrated heatsink and top/bottom terminal connection style, rated for single-phase AC load switching. The integrated heatsink eliminates the need for external thermal management hardware, simplifying panel assembly. Zero-crossing switching minimizes electrical noise and extends load device life. Suitable for switching resistive and inductive loads including heaters, motors, and transformers in temperature control and process automation systems.
