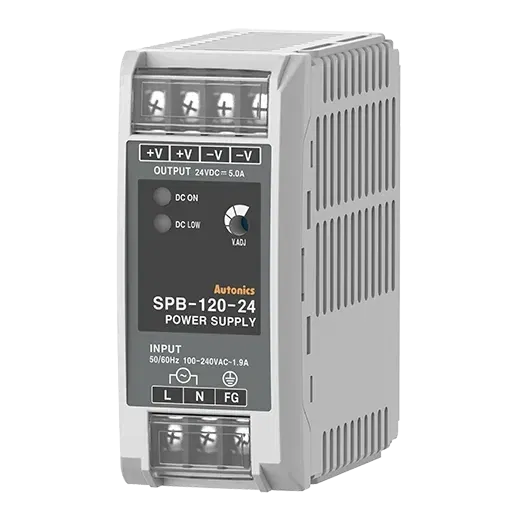

SPB-120-24 - DIN Rail Switching Mode Power Supplies (Discontinued)
Power Supply
- SKU:
- SPB-120-24
- Category:
- Proximity Sensors
- Brand:
$14.04
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 570approx. 466g)
- Protection
- Over-Currenver-Voltagnrush Currenutput Short-Circuiemote Controutput Low-Voltage Indicatower Factor Correctioerminal Cover
- Output_power
- 120W
- Input_Voltage
- 100-240VAC50z
- Mounting type
- DIN Rail
- Output_Current
- 5A
- Output_Voltage
- 24VDC (=)
- Input_Frequency
- 50z
- Input_Power factor
- Min. 0.9
- Permissible voltage
- 85-264VAC50z, 120-370C (=)
- Protection structure
- IP20(IEC standard)
- Input_Efficienc50VAC~
- 0.85
- Input_Efficiency_240VAC~
- 0.88
- Environment_Ambient humidity
- 25 to 85%RH, storage: 25 to 90%RH
- Output_Load fluctuation ratio
- Max. �1%
- Input_Current consumptio50VAC~
- 1.49A
- Output_Input fluctuation ratio
- Max. �0.5%
- Environment_Ambient temperature
- 10 t50, storage: -25 to 65(surrounding air temp.: Max. 40)
- Output type_Ripple&Ripple noise
- Max. �1%
- Input_Current consumption_240VAC~
- 0.61A
- Output type_Voltage adjustment range
- Max. �5%
Description
The SPB-120-24 is a DIN rail-mounted switching mode power supply rated at 120W output with 24V DC output voltage. It converts AC mains input (85�264V AC universal range) to regulated 24V DC for powering sensors, PLCs, solenoids, and control panel components. The switching mode topology provides high efficiency and low heat generation. Note: this model has been discontinued and is replaced by updated Autonics power supply series.
