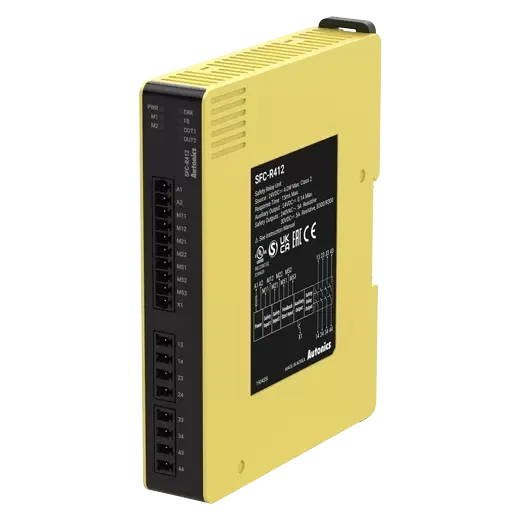

SFC-R412 - Safety Relay Units
Safety Relay Unit
- SKU:
- SFC-R412
- Category:
- Proximity Sensors
- Brand:
$271.35
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Cable
- 100m50,10nF)
- Input
- ON: 11 VDC(=) ? 5mA, OFF: 5VDC(=) 1mA
- Weight
- Approx. 10g (approx. 160)
- Capacity
- 240 VAC~ 5A,30 VDC(=) 5A
- Input time
- 50s, feedback start (manual) 50ms
- Sub output
- 1 � PNP transistor: X1
- Load current
- Max50mA
- Instantaneous
- 4 �
- Power voltage
- 24VDC(=)
- Safety output
- Relay (A contact)
- Leakage current
- 0.1mA
- Life expectancy
- Mechanical:10,000,000 operations, Malfunction50000 operations
- Power consumption
- 4.0W
- Contact resistance
- 100m
- Allowable voltage range
- 85 to 10% of rated voltage
- International standards
- IEN 6150 (SIL3), IEN 62061 (SILCL3) IEN 6047-5-1, EN ISO 13849-1 (Category 4, PLe) UL listed E249635
- Inductive load switching
- IEC6047-5-1: AC-15 (30 A), DC-13 (24 .5 A), UL5030300
- Conditional short circuit current
- 100A
Description
The SFC-R412 is a safety relay unit designed to monitor safety device inputs such as emergency stops, light curtains, safety door switches, and two-hand control devices. It provides dual-channel input monitoring with cross-fault detection, force-guided relay outputs, and manual or automatic restart modes compliant with IEC 62061 and ISO 13849 safety standards. The SFC-R412 enables achievement of safety integrity levels up to SIL 3 / PLe in machine safety circuits depending on the application architecture.
