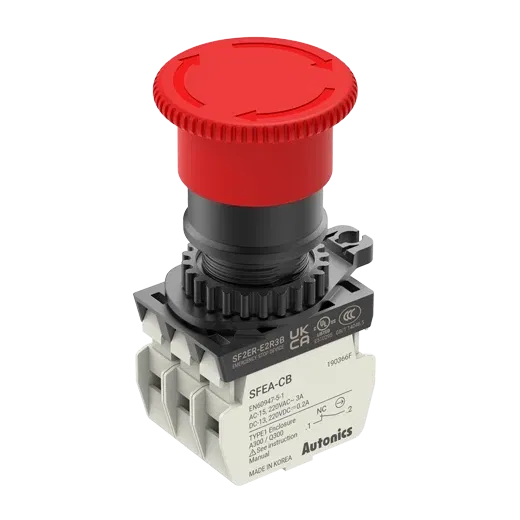

SF2ER-E2R3B - �22/25 Emergency Stop Button Switches
Emergency Stop Switch
- SKU:
- SF2ER-E2R3B
- Category:
- Proximity Sensors
- Brand:
$76.74
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Shock
- 1,000 sq (approx50G) in each X, Y, Z direction for 3 times
- Weight
- ? 69.3 g
- Material
- Button: polycarbonate, body: polyamide 6, lever in fixing unit: polyamide 6
- Vibration
- 1.5mm amplitude at frequency of10 to 55zin each X, Y, Z direction for 2 hours
- Rotation torque
- 0.04 to 0.05 N�m
- Shock_Malfunction
- 250sq (approx. 25g) in each X, Y, Z direction for 3 times
- Operation distance
- 4.7 mm � 0.5
- Rated voltagurrent
- IEC: AC-15 (220VAC~, 3A) DC-13 (220 VDC(=), 0.2A)UL300300
- Dielectric strength
- 2,50VA50z for 1 minute
- Protection structure
- IP65oil resistant, IEC standard)
- Insulation resistance
- 100 M (50 VDC(=) megger)
- Life cycle_Electrical
- Min50,000 times
- Life cycle_Mechanical
- Min. 250000 times
- Vibration_Malfunction
- 1.5mm double amplitude at frequency of10 to 55Hzin each X, Y, Z direction for10 minutes
- Contact operating angle
- CW (clock wise) 33 to 37
- Contact operating power
- 30 to 40 contact
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -20 to 65 storage: -40 to 70
- Allowable operation frequancy_Electrical
- 20 timeinute
- Allowable operation frequancy_Mechanical
- 20 timeinute
Description
The SF2ER-E2R3B is a 22/25 mm panel-mount emergency stop button switch with a red mushroom-head actuator, featuring 2 normally-open and 3 normally-closed contacts in a safety-rated configuration. Designed for machine safety circuits, it meets IEC 60947-5-5 requirements for emergency stop devices. The positive-opening contact mechanism ensures contact separation under all conditions, and the latching mechanism maintains the stopped state until manually reset, preventing inadvertent machine restart.
