PRW30-10DP - Cylindrical Inductive Proximity Sensors
Inductive Proximity Sensor
- SKU:
- PRW30-10DP
- Category:
- Proximity Sensors
- Brand:
$47.35
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Shock
- 50 sq (50G) in each X, Y, Z direction for 3 times
- Material
- Casut: nickel plated brass (DIA. of sensing side 8 mm connector typeCase: SU303), washer: nickel plated iron, sensing side: PBT
- Indicator
- Operation indicator (red LED)
- Vibration
- 1.0 mm amplitude at frequency of10 to 55Hzin each X, Y, Z direction for 2 hours
- Connection
- Cable connector type
- Installation
- Flush
- Power voltage
- 12 - 24 VDC(=)(ripple P-P: 10 %), operating voltage:10 -30 VDC(=)
- Connector type
- M12 Connector
- Control output
- 200 mA
- Residual voltage
- Max. 1.5V
- Sensing distance
- 10mm
- Protection circuit
- Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
- Response frequency
- 400Hz
- Dielectric strength
- Between the charging part and theCase: 1,50 VAC500z for 1 min
- Cable Standaraterial
- Standard type cable (black): polyvinyl chloride (PVC)
- Hysteresis(distance)
- Max.10% of sensing distance
- Protection structure
- IP67(IEC standard)
- Current specification
- Current consumption: Max.10mA
- Insulation resistance
- 50M (50 VDC(=) megger)
- Sensing side diameter
- 30mm
- Standard sensing target
- 3030�1mm(iron)
- Environment_Ambient humidity
- 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
- Unit weight (packaged weight)
- 122 g (134 g)
- Environment_Ambient temperature
- -25 to 70, storage30 to 80 (no freezing or condensation)
Description

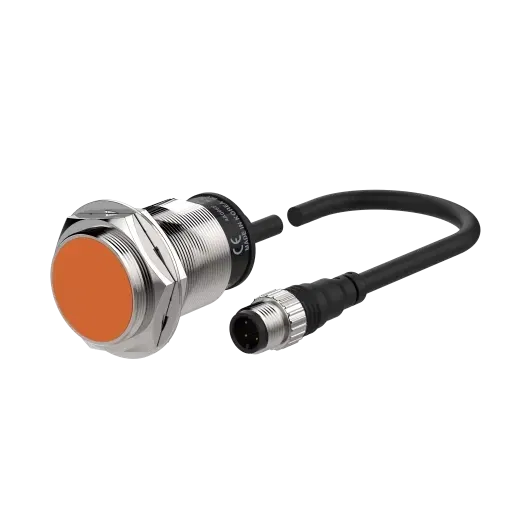

The PRW30-10DP is an M30 weld-resistant cylindrical inductive proximity sensor with 10 mm sensing range and PNP output. The large M30 body with weld-resistant treatment is suited for heavy welding fixture monitoring where large thread engagement is required for vibration resistance and the 10 mm range provides detection across significant air gaps in large weld assemblies and fixture nests.
