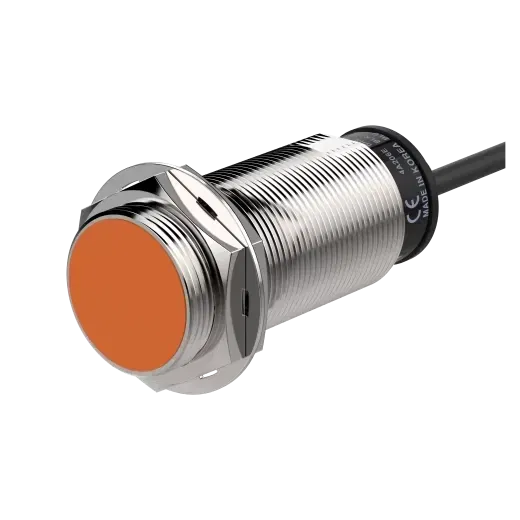

PRL30-10DP - Cylindrical Inductive Proximity Sensors
Inductive Proximity Sensor
- SKU:
- PRL30-10DP
- Category:
- Proximity Sensors
- Brand:
$53.69
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Shock
- 50 sq (50G) in each X, Y, Z direction for 3 times
- Material
- Casut: nickel plated brass (DIA. of sensing side 8 mm connector typeCase: SU303), washer: nickel plated iron, sensing side: PBT
- Indicator
- Operation indicator (red LED)
- Vibration
- 1.0 mm amplitude at frequency of10 to 55Hzin each X, Y, Z direction for 2 hours
- Connection
- Cable type
- Installation
- Flush
- Power voltage
- 12 - 24 VDC(=)(ripple P-P: 10 %), operating voltage:10 -30 VDC(=)
- Control output
- 200 mA
- Residual voltage
- Max. 1.5V
- Sensing distance
- 10mm
- Protection circuit
- Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
- Response frequency
- 400Hz
- Dielectric strength
- Between the charging part and theCase: 1,50 VAC500z for 1 min
- Cable Standaraterial
- Standard type cable (black): polyvinyl chloride (PVC)
- Hysteresis(distance)
- Max.10% of sensing distance
- Protection structure
- IP67(IEC standard)
- Current specification
- Current consumption: Max.10mA
- Insulation resistance
- 50M (50 VDC(=) megger)
- Sensing side diameter
- 30mm
- Standard sensing target
- 3030�1mm(iron)
- Environment_Ambient humidity
- 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
- Unit weight (packaged weight)
- 10 g (247 g)
- Environment_Ambient temperature
- -25 to 70, storage30 to 80 (no freezing or condensation)
Description
The PRL30-10DP is an M30 long-body cylindrical inductive proximity sensor with 10 mm sensing range and PNP output. The large M30 thread with extended body length delivers maximum mechanical robustness and reach for deeply recessed or panel-mounted sensing applications. The 10 mm range enables detection of large metallic targets across wide installation gaps in heavy manufacturing equipment.
