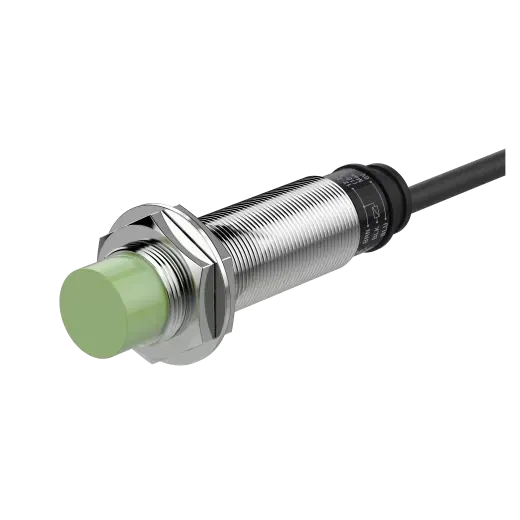

PRL18-8DN - Cylindrical Inductive Proximity Sensors

Specifications

Shock

50 sq (50G) in each X, Y, Z direction for 3 times

Material

Casut: nickel plated brass (DIA. of sensing side 8 mm connector typeCase: SU303), washer: nickel plated iron, sensing side: PBT

Indicator

Operation indicator (red LED)

Vibration

1.0 mm amplitude at frequency of10 to 55Hzin each X, Y, Z direction for 2 hours

Connection

Cable type

Installation

Non-flush

Power voltage

12 - 24 VDC(=)(ripple P-P: 10 %), operating voltage:10 -30 VDC(=)

Control output

200 mA

Residual voltage

Max. 1.5V

Sensing distance

8mm

Protection circuit

Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit

Response frequency

350z

Dielectric strength

Between the charging part and theCase: 1,50 VAC500z for 1 min

Cable Standaraterial

Standard type cable (black): polyvinyl chloride (PVC)

Hysteresis(distance)

Max.10% of sensing distance

Protection structure

IP67(IEC standard)

Current specification

Current consumption: Max.10mA

Insulation resistance

50M (50 VDC(=) megger)

Sensing side diameter

18mm

Standard sensing target

25�25�1mm(iron)

Environment_Ambient humidity

35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)

Unit weight (packaged weight)

30 g (142 g)

Environment_Ambient temperature

-25 to 70, storage30 to 80 (no freezing or condensation)
