PRFWT18-5DO-IV - Cylindrical Inductive Full-Metal Proximity Sensors
Full-Metal Sensor
- SKU:
- PRFWT18-5DO-IV
- Category:
- Proximity Sensors
- Brand:
$145.77
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Shock
- 1,000 sq (50 G) in each X, Y, Z direction for10 times
- Material
- CaseNut: stainless steel303 (SU303), washer: stainless steel304 (SU304), sensing side: stainless steel303 (SU303)
- Indicator
- Operation indicator (red LED)
- Vibration
- 1.5 mm amplitude at frequency of10 to 55z in each X, Y, Z direction for 2 hours
- Connection
- Cable connector type
- Installation
- Flush
- Power voltage
- 12 - 24 VDC(=)(ripple P-P: 10 %), operating voltage:10 -30 VDC(=)
- Connector type
- M12 Connector
- Control output
- 3 t50 M
- Residual voltage
- Max. 3.5V
- Sensing distance
- 5mm
- Protection circuit
- Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
- Response frequency
- 80Hz
- Dielectric strength
- Between the charging part and theCase: 1,000 VAC50Hz for 1 minute
- Cable Standaraterial
- Oil resistant cable (gray): polyvinyl chloride (oil resistant PVC)
- Hysteresis(distance)
- Max. 15% of sensing distance
- Protection structure
- IP67(IEC standard)
- Current specification
- Leakage current: Max. 0.8mA
- Insulation resistance
- 50M (50 VDC(=) megger)
- Sensing side diameter
- 18mm
- Standard sensing target
- 3030�1mm(iron)
- Environment_Ambient humidity
- 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
- Unit weight (packaged weight)
- 97 g (132 g)
- Environment_Ambient temperature
- -25 to 70, storage: -25 to 70 (no freezing or condensation)
Description

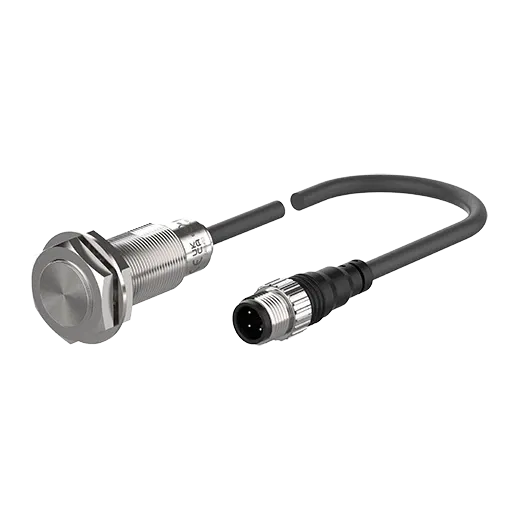

The PRFWT18-5DO-IV is an M18 cylindrical inductive full-metal proximity sensor with weld-immune circuitry, 5 mm sensing range, dual transistor output (NO+NC), IO-Link communication, and vibration-resistant construction. The full stainless steel housing provides maximum resistance to mechanical impact, pressure washing, and corrosive chemicals. Weld immunity eliminates false triggering from arc and resistance welding fields, IO-Link enables smart diagnostics and remote parameterization, and the vibration-resistant design ensures connection integrity in high-vibration welding and fabrication environments.
