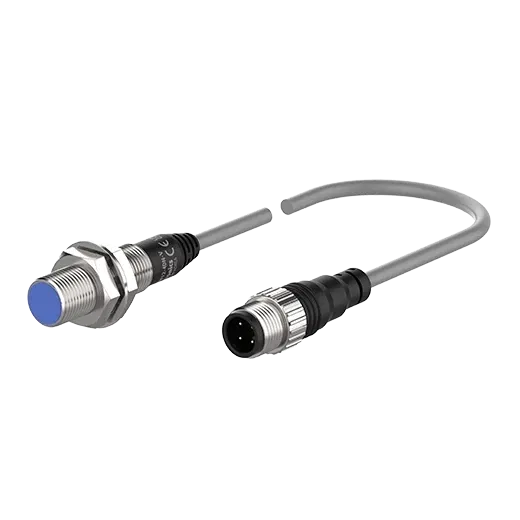

PRDWT12-4DO-IV - Cylindrical Inductive Long-Distance Proximity Sensors

Specifications

Shock

50 sq (50G) in each X, Y, Z direction for 3 times

Material

Casut: nickel plated brass (DIA. of sensing side 8 mm connector typeCase: SU303), washer: nickel plated iron, sensing side: PBT

Indicator

Operation indicator (red LED)

Vibration

1.0 mm amplitude at frequency of10 to 55Hzin each X, Y, Z direction for 2 hours

Connection

Cable connector type

Installation

Flush

Power voltage

12 - 24 VDC(=)(ripple P-P: 10 %), operating voltage:10 -30 VDC(=)

Connector type

M12 Connector

Control output

2 t50 M

Residual voltage

Max. 3.5V

Sensing distance

4mm

Protection circuit

Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit

Response frequency

450z

Dielectric strength

1,50 VAC50z for 1 minute

Cable Standaraterial

Oil resistant cable (gray): polyvinyl chloride (oil resistant PVC)

Hysteresis(distance)

Max.10% of sensing distance

Protection structure

IP67(IEC standard)

Current specification

Leakage current: Max. 0.6mA

Insulation resistance

50M (50 VDC(=) megger)

Sensing side diameter

12mm

Standard sensing target

12�12�1mm(iron)

Environment_Ambient humidity

35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)

Unit weight (packaged weight)

32g (55)

Environment_Ambient temperature

-25 to 70, storage30 to 80 (no freezing or condensation)
