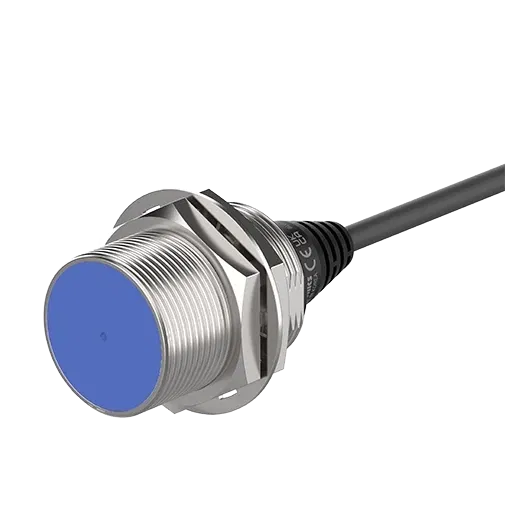

PRDT30-15DO - Cylindrical Inductive Long-Distance Proximity Sensors
Long-Distance Sensor
- SKU:
- PRDT30-15DO
- Category:
- Proximity Sensors
- Brand:
$54.80
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Shock
- 50 sq (50G) in each X, Y, Z direction for 3 times
- Material
- Casut: nickel plated brass (DIA. of sensing side 8 mm connector typeCase: SU303), washer: nickel plated iron, sensing side: PBT
- Indicator
- Operation indicator (red LED)
- Vibration
- 1.0 mm amplitude at frequency of10 to 55Hzin each X, Y, Z direction for 2 hours
- Connection
- Cable type
- Installation
- Flush
- Power voltage
- 12 - 24 VDC(=)(ripple P-P: ?10 %), operating voltage:10 -30 VDC(=)
- Control output
- 2 t50 M
- Residual voltage
- Max. 3.5V
- Sensing distance
- 15mm
- Protection circuit
- Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
- Response frequency
- 100Hz
- Dielectric strength
- 1,50 VAC50z for 1 minute
- Cable Standaraterial
- Standard type cable (black): polyvinyl chloride (PVC)
- Hysteresis(distance)
- Max.10% of sensing distance
- Protection structure
- IP67(IEC standard)
- Current specification
- Leakage current: Max. 0.6mA
- Insulation resistance
- 50M (50 VDC(=) megger)
- Sensing side diameter
- 30mm
- Standard sensing target
- 45�45�1mm(iron)
- Environment_Ambient humidity
- 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
- Environment_Ambient temperature
- -25 to 70, storage30 to 80 (no freezing or condensation)
Description
The PRDT30-15DO is an M30 inductive long-distance sensor with 15 mm sensing range and dual transistor output. The M30 body provides maximum mechanical robustness, and the 15 mm range enables detection of large metallic targets at significant standoff distances. The dual transistor output provides direct complementary switching for complex interlocking and safety control applications.
