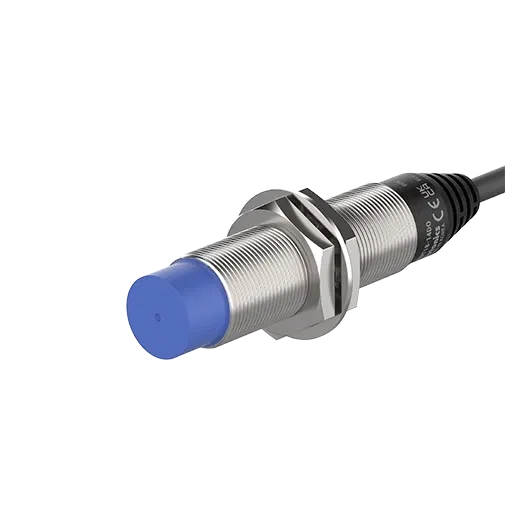

PRDL18-14DN - Cylindrical Inductive Long-Distance Proximity Sensors
Long-Distance Sensor
- SKU:
- PRDL18-14DN
- Category:
- Proximity Sensors
- Brand:
$41.73
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Shock
- 50 sq (50G) in each X, Y, Z direction for 3 times
- Material
- Casut: nickel plated brass (DIA. of sensing side 8 mm connector typeCase: SU303), washer: nickel plated iron, sensing side: PBT
- Indicator
- Operation indicator (red LED)
- Vibration
- 1.0 mm amplitude at frequency of10 to 55Hzin each X, Y, Z direction for 2 hours
- Connection
- Cable type
- Installation
- Non-flush
- Power voltage
- 12 - 24 VDC(=)(ripple P-P:10 %), operating voltage:10 -30 VDC(=)
- Control output
- 200 mA
- Residual voltage
- Max. 1.5V
- Sensing distance
- 14mm
- Protection circuit
- Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
- Response frequency
- 200Hz
- Dielectric strength
- 1,50 VAC50z for 1 minute
- Cable Standaraterial
- Standard type cable (black): polyvinyl chloride (PVC)
- Hysteresis(distance)
- Max.10% of sensing distance
- Protection structure
- IP67(IEC standard)
- Current specification
- Current consumption: Max.10mA
- Insulation resistance
- 50M (50 VDC(=) megger)
- Sensing side diameter
- 18mm
- Standard sensing target
- 40�40�1mm(iron)
- Environment_Ambient humidity
- 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
- Unit weight (packaged weight)
- 127 g (145 g)
- Environment_Ambient temperature
- -25 to 70, storage30 to 80 (no freezing or condensation)
Description
The PRDL18-14DN is an M18 long-body inductive long-distance proximity sensor with 14 mm sensing range and NPN output. The extended barrel length provides additional clearance in deeply recessed mounting applications, while the 14 mm range allows sensing across large machine gaps. Used in thick-panel installations, guarded sensor pockets, and heavy-industry position sensing applications.
