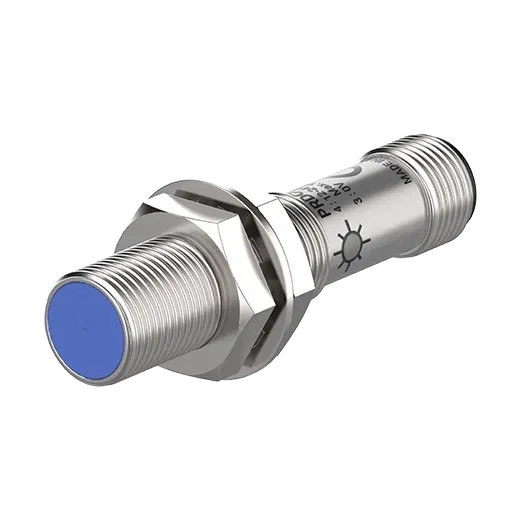

PRDCMT12-4DO - Cylindrical Inductive Long-Distance Proximity Sensors
Long-Distance Sensor
- SKU:
- PRDCMT12-4DO
- Category:
- Proximity Sensors
- Brand:
$52.95
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Shock
- 50 sq (50G) in each X, Y, Z direction for 3 times
- Material
- Casut: nickel plated brass (DIA. of sensing side 8 mm connector typeCase: SU303), washer: nickel plated iron, sensing side: PBT
- Indicator
- Operation indicator (red LED)
- Vibration
- 1.0 mm amplitude at frequency of10 to 55Hzin each X, Y, Z direction for 2 hours
- Connection
- Connector models
- Installation
- Flush
- Power voltage
- 12 - 24 VDC(=)(ripple P-P:10 %), operating voltage:10 -30 VDC(=)
- Connector type
- M12 Connector
- Control output
- 2 t50 M
- Residual voltage
- Max. 3.5V
- Sensing distance
- 4mm
- Protection circuit
- Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
- Response frequency
- 450z
- Dielectric strength
- 1,50 VAC50z for 1 minute
- Hysteresis(distance)
- Max.10% of sensing distance
- Protection structure
- IP67(IEC standard)
- Current specification
- Leakage current: Max. 0.6mA
- Insulation resistance
- 50M (50 VDC(=) megger)
- Sensing side diameter
- 12mm
- Standard sensing target
- 12�12�1mm(iron)
- Environment_Ambient humidity
- 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
- Unit weight (packaged weight)
- 20g (50)
- Environment_Ambient temperature
- -25 to 70, storage30 to 80 (no freezing or condensation)
Description
The PRDCMT12-4DO is an M12 inductive long-distance sensor with ceramic face, 4 mm range, and dual transistor output (NO+NC). The complementary output directly provides both switching logic states from a single sensor, reducing wiring complexity. The ceramic face and extended range suit precision metalworking and fabrication environments requiring both detection flexibility and face protection.
