PRDCML12-4DP - Cylindrical Inductive Long-Distance Proximity Sensors
Long-Distance Sensor
- SKU:
- PRDCML12-4DP
- Category:
- Proximity Sensors
- Brand:
$54.93
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Shock
- 50 sq (50G) in each X, Y, Z direction for 3 times
- Material
- Casut: nickel plated brass (DIA. of sensing side 8 mm connector typeCase: SU303), washer: nickel plated iron, sensing side: PBT
- Indicator
- Operation indicator (red LED)
- Vibration
- 1.0 mm amplitude at frequency of10 to 55Hzin each X, Y, Z direction for 2 hours
- Connection
- Connector models
- Installation
- Flush
- Power voltage
- 12 - 24 VDC(=)(ripple P-P:10 %), operating voltage:10 -30 VDC(=)
- Connector type
- M12 Connector
- Control output
- 200 mA
- Residual voltage
- Max. 1.5V
- Sensing distance
- 4mm
- Protection circuit
- Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
- Response frequency
- 50Hz
- Dielectric strength
- 1,50 VAC50z for 1 minute
- Hysteresis(distance)
- Max.10% of sensing distance
- Protection structure
- IP67(IEC standard)
- Current specification
- Current consumption: Max.10mA
- Insulation resistance
- 50M (50 VDC(=) megger)
- Sensing side diameter
- 12mm
- Standard sensing target
- 12�12�1mm(iron)
- Environment_Ambient humidity
- 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
- Unit weight (packaged weight)
- 24g (54g)
- Environment_Ambient temperature
- -25 to 70, storage30 to 80 (no freezing or condensation)
Description

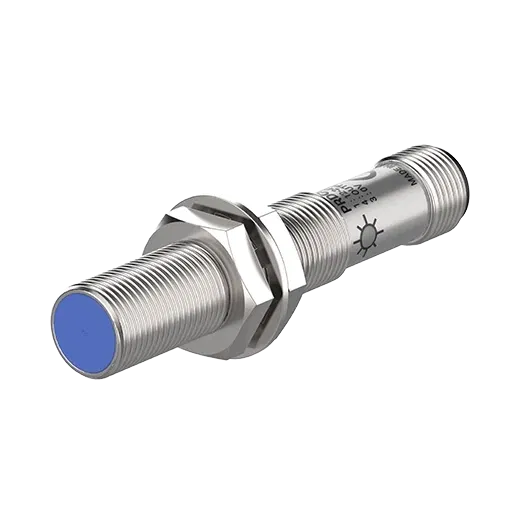

The PRDCML12-4DP is an M12 long-body inductive long-distance proximity sensor with ceramic face, 4 mm sensing range, and PNP output. The extended body length enables mounting in deeply recessed sensor pockets or through thick machine panels while maintaining the standard M12 thread. Ceramic face protection extends service life in environments with abrasive contamination or chemical wash exposure.
