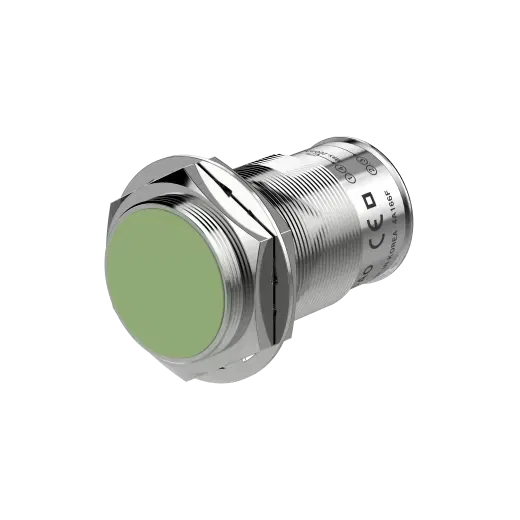

PRCMT30-10DO - Cylindrical Inductive Proximity Sensors
Inductive Proximity Sensor
- SKU:
- PRCMT30-10DO
- Category:
- Proximity Sensors
- Brand:
$56.78
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Shock
- 50 sq (50G) in each X, Y, Z direction for 3 times
- Material
- Casut: nickel plated brass (DIA. of sensing side 8 mm connector typeCase: SU303), washer: nickel plated iron, sensing side: PBT
- Indicator
- Operation indicator (red LED)
- Vibration
- 1.0 mm amplitude at frequency of10 to 55Hzin each X, Y, Z direction for 2 hours
- Connection
- Connector models
- Installation
- Flush
- Power voltage
- 12 - 24 VDC(=)(ripple P-P:10 %), operating voltage:10 -30 VDC(=)
- Connector type
- M12 Connector
- Control output
- 2 t50 M
- Residual voltage
- Max. 3.5V
- Sensing distance
- 10mm
- Protection circuit
- Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
- Response frequency
- 400Hz
- Dielectric strength
- Between the charging part and theCase: 1,50 VAC500z for 1 min
- Hysteresis(distance)
- Max.10% of sensing distance
- Protection structure
- IP67(IEC standard)
- Current specification
- Leakage current: Max. 0.6mA
- Insulation resistance
- 50M (50 VDC(=) megger)
- Sensing side diameter
- 30mm
- Standard sensing target
- 3030�1mm(iron)
- Environment_Ambient humidity
- 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
- Unit weight (packaged weight)
- 142 g (154 g)
- Environment_Ambient temperature
- -25 to 70, storage30 to 80 (no freezing or condensation)
Description
The PRCMT30-10DO is an M30 inductive proximity sensor with 10 mm sensing range, dual transistor output (NO+NC), and ceramic face. The M30 body delivers the highest mechanical robustness in the cylindrical inductive range, and the 10 mm sensing distance provides maximum standoff for large target detection. The dual output and ceramic face suit demanding heavy industry applications.
