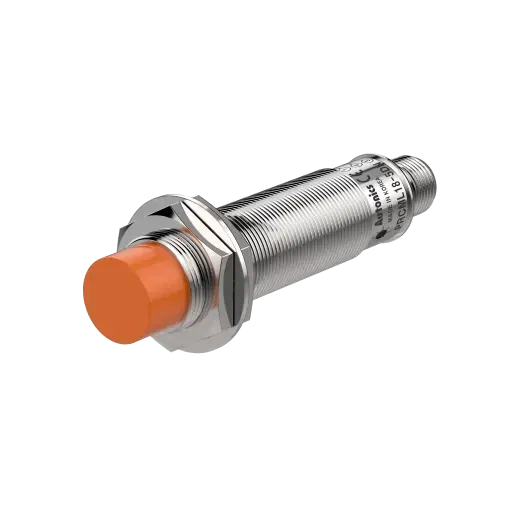

PRCML18-8DP - Cylindrical Inductive Proximity Sensors
Inductive Proximity Sensor
- SKU:
- PRCML18-8DP
- Category:
- Proximity Sensors
- Brand:
$52.95
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Shock
- 50 sq (50G) in each X, Y, Z direction for 3 times
- Material
- Casut: nickel plated brass (DIA. of sensing side 8 mm connector typeCase: SU303), washer: nickel plated iron, sensing side: PBT
- Indicator
- Operation indicator (red LED)
- Vibration
- 1.0 mm amplitude at frequency of10 to 55Hzin each X, Y, Z direction for 2 hours
- Connection
- Connector models
- Installation
- Non-flush
- Power voltage
- 12 - 24 VDC(=)(ripple P-P:10 %), operating voltage:10 -30 VDC(=)
- Connector type
- M12 Connector
- Control output
- 200 mA
- Residual voltage
- Max. 1.5V
- Sensing distance
- 8mm
- Protection circuit
- Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
- Response frequency
- 350z
- Dielectric strength
- Between the charging part and theCase: 1,50 VAC500z for 1 min
- Hysteresis(distance)
- Max.10% of sensing distance
- Protection structure
- IP67(IEC standard)
- Current specification
- Current consumption: Max.10mA
- Insulation resistance
- 50M (50 VDC(=) megger)
- Sensing side diameter
- 18mm
- Standard sensing target
- 25�25�1mm(iron)
- Environment_Ambient humidity
- 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
- Unit weight (packaged weight)
- 73 g (85 g)
- Environment_Ambient temperature
- -25 to 70, storage30 to 80 (no freezing or condensation)
Description
The PRCML18-8DP is an M18 long-body inductive proximity sensor with 8 mm sensing range, PNP output, and ceramic face. The extended body length provides additional clearance for mounting in recessed locations or through thick machine panels. Ceramic face protection combined with the extended housing suits high-wear applications such as continuous casting lines and large press tooling.
