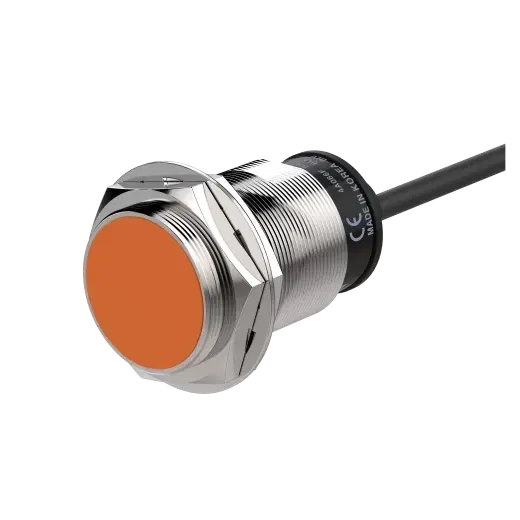

PR30-10DP - Cylindrical Inductive Proximity Sensors
Inductive Proximity Sensor
- SKU:
- PR30-10DP
- Category:
- Proximity Sensors
- Brand:
$48.30
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Shock
- 50 sq (50G) in each X, Y, Z direction for 3 times
- Material
- Casut: nickel plated brass (DIA. of sensing side 8 mm connector typeCase: SU303), washer: nickel plated iron, sensing side: PBT
- Indicator
- Operation indicator (red LED)
- Vibration
- 1.0 mm amplitude at frequency of10 to 55Hzin each X, Y, Z direction for 2 hours
- Connection
- Cable type
- Installation
- Flush
- Power voltage
- 12 - 24 VDC(=)(ripple P-P:10 %), operating voltage:10 -30 VDC(=)
- Control output
- 200 mA
- Residual voltage
- Max. 1.5V
- Sensing distance
- 10mm
- Protection circuit
- Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
- Response frequency
- 400Hz
- Dielectric strength
- Between the charging part and theCase: 1,50 VAC500z for 1 min
- Cable Standaraterial
- Standard type cable (black): polyvinyl chloride (PVC)
- Hysteresis(distance)
- Max.10% of sensing distance
- Protection structure
- IP67(IEC standard)
- Current specification
- Current consumption: Max.10mA
- Insulation resistance
- 50M (50 VDC(=) megger)
- Sensing side diameter
- 30mm
- Standard sensing target
- 3030�1mm(iron)
- Environment_Ambient humidity
- 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
- Unit weight (packaged weight)
- 170 (207 g)
- Environment_Ambient temperature
- -25 to 70, storage30 to 80 (no freezing or condensation)
Description
The PR30-10DP is an M30 cylindrical inductive proximity sensor with a 10 mm sensing range and PNP output. The large M30 body offers the longest sensing range in the standard inductive proximity family, suitable for detecting large metallic targets, gear teeth on large sprockets, and metal presence at significant standoff distances in heavy industrial machinery and mobile equipment.
