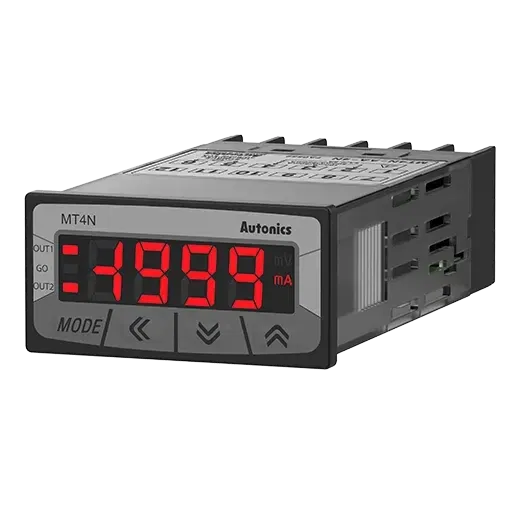

MT4N-DA-E0 - Compact Digital Panel Meters with Diverse Input/Output Options
Digital Panel Meter
- SKU:
- MT4N-DA-E0
- Category:
- Proximity Sensors
- Brand:
$124.84
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Measurement
- DC current
- Hold function
- Includes (external hold function)
- Power voltage
- 12-24VDC (=), 12-24VAC~
- Display method
- 4-digit 7-segment LCD
- Sampling cycle
- 50s
- Insulation type
- Double insulation or reinforced insulation(mark: (INS), dielectric strength between the measuring input part and the power part: 1kV)
- Character height
- 9mm
- Display accuracy
- 23�5 - � 0.1 % F.S. rdg � 2 digit� 0.3 % F.S. rdg � 3 digit max. only for 5A terminal. 10 t50-� 0.5 % F.S. rdg � 3 digit
- conversion method
- (Sigma Delta) ADC
- Max. display Range
- -1999 to 9999
- Input specification
- 0-50mA, 0-200mA, 0-50A, 4-20mA, 0-5mA, 0-2mA
- Protection structure
- IP54 (front part, IEC standard)
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Unit weight (packaged weight)
- 64 g (127 g)
- Environment_Ambient temperature
- 10 t50 storage: -20 to 60
- Output_Main Output(Comparative Value)
- Relay (OUT1, OUT2)
Description
The MT4N-DA-E0 is a compact digital panel meter with diverse input options including thermocouple, RTD, voltage, and current analog inputs, and analog retransmission output. The multi-input capability makes it a versatile single-device solution for displaying various process variables such as temperature, pressure, flow, and level. It features front-panel scaling and alarm setpoint programming for process monitoring and alarm indication.
