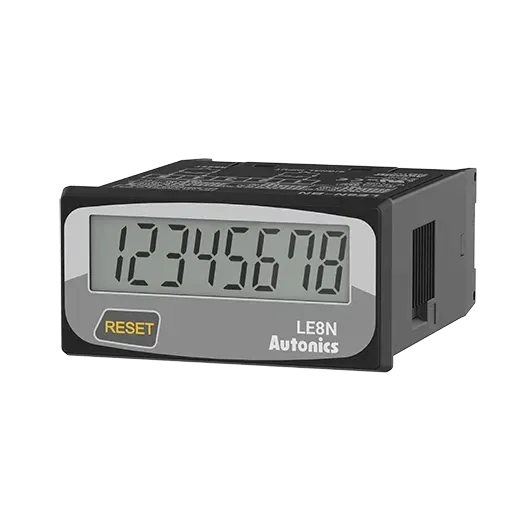

LE8N-BN - Compact 8-Digit LCD Digital Timers (Indicator Only)
LCD Digital Timer
- SKU:
- LE8N-BN
- Category:
- Proximity Sensors
- Brand:
$57.24
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 96g (approx50)
- Terminal
- Terminal block
- Accessories
- Mounting bracket, Rubber waterproof ring
- Power voltage
- Built-in battery(over10 years)
- Setting range
- 1 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour
- Control output
- Indicator
- Display method
- 8-digit 7-segment LCD
- Time operation
- POWER ON START
- Operation method
- Count up
- Min. signal Width
- SIGNAL, RESET input: Approx. 20ms
- Input Method_Reset
- No-voltage input(NPN)
- External set switch
- SW1, SW2, SW3
- Input Method_Signal
- No-voltage input(NPN)
- Protection structure
- IP66(front panel)
- Environment_Ambient humidity
- 35 to 85%RH
- Environment_Ambient temperature
- 10 to 55 storage: -25 to 65
Description
The LE8N-BN is a compact 8-digit LCD digital timer operating in indicator-only mode, displaying elapsed time or a counter value without direct control output. It is used for runtime monitoring, cycle time recording, and production time tracking where visual indication of elapsed time is required without automatic output switching. The 8-digit display supports wide time range readouts with high resolution.
