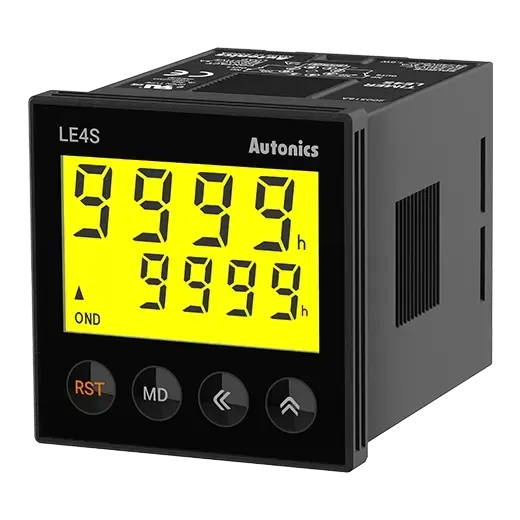

LE4S - LCD Display Digital Timers
LCD Digital Timer
- SKU:
- LE4S
- Category:
- Proximity Sensors
- Brand:
$916.50
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 98g
- Terminal
- 8-pin plug
- Backlight
- Backlight function
- Accessories
- Bracket
- Power voltage
- 24-240VAC~, 24-240VDC (=)
- Setting range
- 0.01 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 0 min 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 0 hour 1 min to 99 hour 59 min, 0.01 hour to 99.99 hour, 0.1 hour to 999.9 hour, 1 our to 9999 ho
- Display method
- 4-digit 7-segment LCD
- Time operation
- SIGNAL ON START
- Operation method
- Count up, Count down
- Output Operation
- ON DELAY, INTERVAL, FLICKER, ON-OFF DELAY, OFF DELAY
- Signal Input Method
- No-voltage input(NPN)
- Control output_Relay
- Time-limit SPDT (1c): 1
- Min. signal Width_RESET
- 1ms, 20ms (selectable)
- Min. signal Width_START
- 1ms, 20ms (selectable)
- Min. signal Width_INHIBIT
- 1ms, 20ms (selectable)
- Environment_Ambient humidity
- 35 to 85%RH
- Environment_Ambient temperature
- 10 to 55 storage: -25 to 65
Description
The LE4S is an LCD display digital timer with a 4-digit readout, compact panel-mount housing, and multiple timing mode options. The LCD display provides excellent readability in bright ambient lighting and consumes minimal power. It supports ON-delay, OFF-delay, and interval timing modes with push-button programming, suitable for process timing, machine cycle control, and test duration measurement in industrial and laboratory applications.
