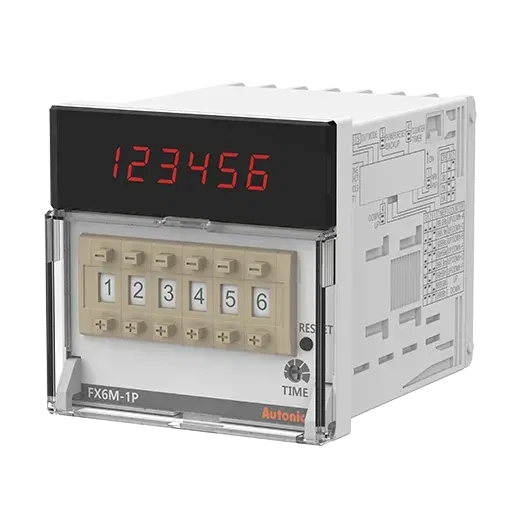

FX6M-1P4 - Standard Digital Counter/Timers
Digital Counter/Timer
- SKU:
- FX6M-1P4
- Category:
- Proximity Sensors
- Brand:
$162.05
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 245g (approx. 180g)
- Terminal
- Terminal block
- Power voltage
- 100-240VAC50z
- Setting range
- 0.1 sec to 99999.9 sec, 1 sec to 999999 sec, 0.01 sec to 99 min 59.99 sec, 0.1 sec to 999 min 59.9 sec, 0.1 min to 99999.9 min, 1 sec to 99 hour 59 min 59 sec, 1 min to 9999 hour 59 min, 0.1 hour to 99999.9 hour
- Display method
- 6-digit 7-segment LED
- Time operation
- POWER ON START
- Operation method
- Counter: Count up, Count down, Count uownTimer: Count up, Count down
- Output Operation
- POWER ON DELAY, FLICKER
- Memory Protection
- Approx.10 years
- Min. signal Width
- 20ms
- Control output_Type
- 1-stage preset
- Max. Counting Speed
- 1,30, 2k, 5k [cps]
- Signal Input Method
- Voltage input(PNP), No-voltage input(NPN)
- Control output_Relay
- SPDT (1c): 1
- Protection structure
- IP20(front panel)
- External Power Supply
- Max. 12VDC (=) 1050A
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- 10 to 55 storage: -25 to 65
- Control output_NPN open collector
- 1
Description
The FX6M-1P4 is a standard 6-digit digital counter/timer with a single preset output and multi-function operating modes. The 6-digit display accommodates high-count applications and extended time ranges. It supports addition/subtraction counting, time measurement, and rate display modes, with relay or transistor output options for integration with PLC-controlled batch processing, production count control, and interval timing systems.
