FX4S-1P4 - Compact Digital Counter/Timers
Digital Counter/Timer
- SKU:
- FX4S-1P4
- Category:
- Proximity Sensors
- Brand:
$115.25
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 171g (approx. 10g)
- Terminal
- Terminal block
- Power voltage
- 100-240VAC50z
- Setting range
- 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
- Display method
- 4-digit 7-segment LED
- Time operation
- POWER ON START
- Operation method
- Counter: Count up, Count down, Count uownTimer: Count up, Count down
- Output Operation
- POWER ON DELAY, FLICKER
- Memory Protection
- Approx.10 years
- Min. signal Width
- 20ms
- Control output_Type
- 1-stage preset
- Max. Counting Speed
- 1,30, 2k, 5k [cps]
- Signal Input Method
- Voltage input(PNP), No-voltage input(NPN)
- Control output_Relay
- SPDT (1c): 1
- Protection structure
- IP20(front panel)
- External Power Supply
- Max. 12VDC (=) 1050A
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- 10 to 55 storage: -25 to 65
- Control output_NPN open collector
- 1
Description

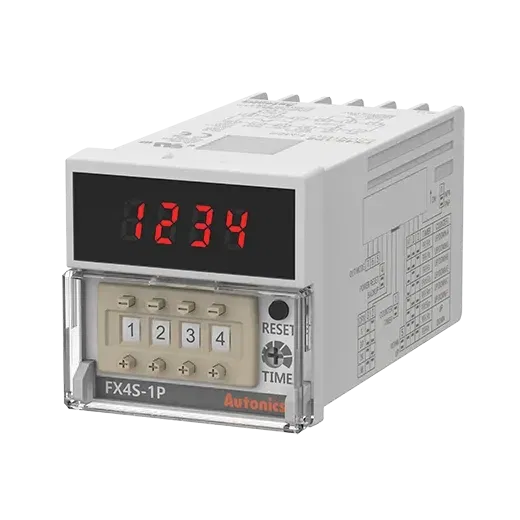

The FX4S-1P4 is a compact 4-digit digital counter/timer with a single preset output and front-panel push-button programming. It combines counting and timing functions in a compact DIN-panel-mount housing, supporting count input signals from sensors and encoders. The preset output triggers when the accumulated count reaches the programmed target value, suitable for batch counting, production monitoring, and cycle timing applications.
