FTR-410-10R - Fiber Optic Units
Fiber Optic Unit
- SKU:
- FTR-410-10R
- Category:
- Proximity Sensors
- Brand:
$129.52
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Type
- Right-angle
- Free cut
- Free cut
- Cable length
- 1m
- Sensing type
- Through-beam type
- Sensing distance
- 460m
- Min. sensing target
- 0.5mm
- Allowable bend radius
- R1
- Environment_Ambient temperature
- -40 to 70
Description

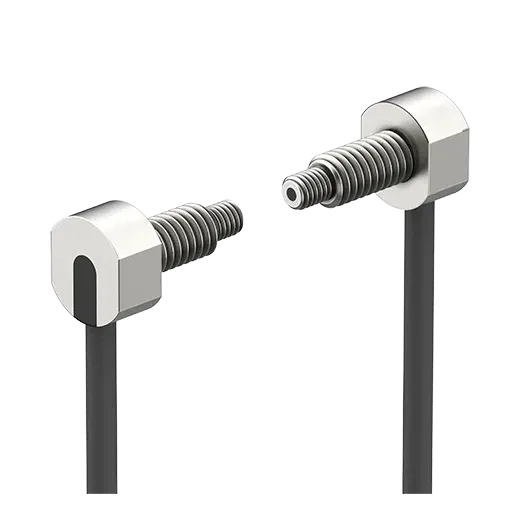

The FTR-410-10R is a right-angle tip thru-beam fiber optic unit with 410 nm wavelength, 10-meter cable, and a 90-degree bent fiber tip. The right-angle tip directs the optical beam perpendicular to the fiber cable axis, enabling detection in locations where the cable cannot approach the target directly. Used in bore detection, side-wall sensing, and angular detection geometry applications.
