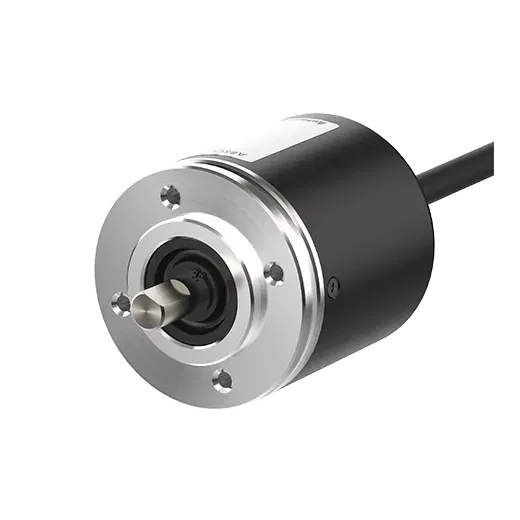

EP50S8-360-3F-N-24 - 50 mm Single-Turn Absolute Rotary Encoders (Shaft Type)
Absolute Rotary Encoder
- SKU:
- EP50S8-360-3F-N-24
- Category:
- Proximity Sensors
- Brand:
$235.27
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Connection
- Axial cable type
- Resolution
- 360
- Output code
- Gray Code
- Power voltage
- 12-24VDC (=) �5%(ripple P-P: max. 5%)
- Control output
- NPN open collector
- Starting torque
- Max. 70.cm(max. 0.0069N.m)
- Current consumption
- 100 mA (no load)
- Protection structure
- IP65EC standard)
- Insulation resistance
- 100 M(50 VDC(=) megger)
- Max. response frequency
- 35kHz
- Max. allowable revolution
- 3000rpm
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 90% RH
- Unit weight (packaged weight)
- 398 g (482 g)
- Environment_Ambient temperature
- 10 to 70 storage: -25 to 85
Description
The EP50S8-360-3F-N-24 is a 50 mm shaft-type single-turn absolute rotary encoder with 360-position resolution (8-bit), 8 mm shaft, parallel BCD output, and 24V DC supply. Absolute encoders retain positional data without homing after power loss, making them suitable for applications where reference position must be maintained after machine startup. Used in valve position feedback, rotary table indexing, and axis homing systems.
