ENC-1-1-N-24 - Wheel Type Incremental Rotary Encoders
Wheel Rotary Encoder
- SKU:
- ENC-1-1-N-24
- Category:
- Proximity Sensors
- Brand:
$176.64
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 494g
- Gear ratio
- 1:01
- Output phase
- A, B
- Power voltage
- 12-24VDC (=) �5%(ripple P-P: max. 5%)
- Control output
- NPN open collector
- Connection type
- Axial cable type
- Number of pulses
- 250
- Wheel circumference
- 250m
- Protection structure
- IP50
- Min. measurement unit
- 1mm
- Max. response frequency
- 180kHz
- Max. allowable revolution
- 500rpm
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 90% RH
- Environment_Ambient temperature
- 10 to 70 storage: -25 to 85
Description

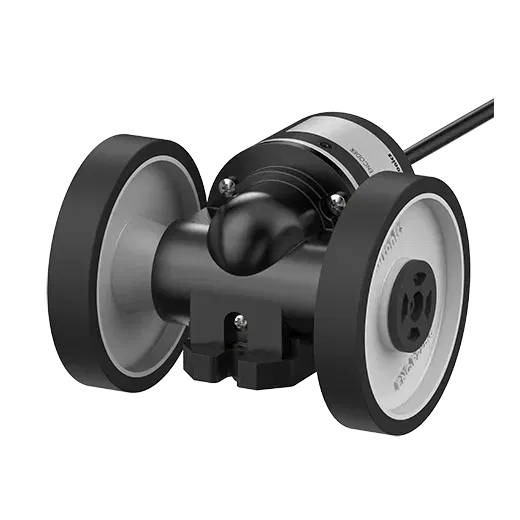

The ENC-1-1-N-24 is a wheel-type incremental rotary encoder with a 1-meter measuring wheel circumference, NPN output, and 24V DC supply. The wheel-type design mounts directly against a moving surface to measure linear distance by converting rotational motion into pulse output. Used in web length measurement, conveyor distance tracking, and material feed length control applications.
