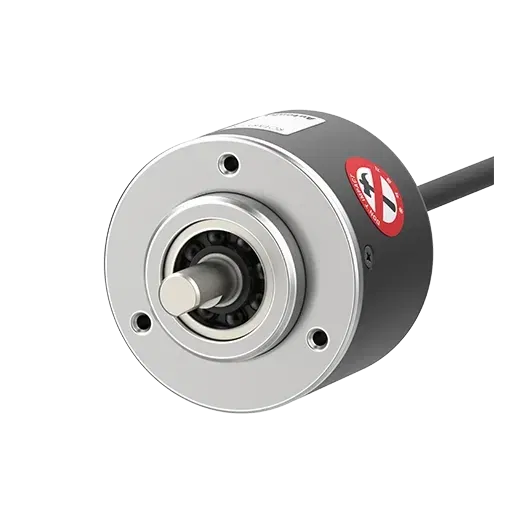

E50S8-8000-6-L-5 - 50 mm Incremental Rotary Encoders (Shaft Type)
Incremental Rotary Encoder
- SKU:
- E50S8-8000-6-L-5
- Category:
- Proximity Sensors
- Brand:
$295.46
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 363g(approx. 275g)
- Resolution
- 8000
- Accessories
- 8mm coupling, Bracket
- Output phase
- A, (A^), B, (B^), Z, (Z^)
- Power voltage
- 5VDC (=) �5%(ripple P-P: max. 5%)
- Control output
- Line Driver
- Connection type
- Axial cable type
- Starting torque
- Max. 70.cm(max. 0.00686N.m)
- Protection structure
- IP50(IEC standard)
- Shaft outer diameter
- 8mm
- Max. response frequency
- 300kHz
- Max. allowable revolution
- 500rpm
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 90% RH
- Environment_Ambient temperature
- 10 to 70 storage: -25 to 85
Description
The E50S8-8000-6-L-5 is a 50 mm shaft-type incremental encoder with 8000 PPR ultra-high resolution, 8 mm shaft, line driver output, and 5V DC supply. The 8000 PPR count provides exceptional positional resolution, making it suitable for precision grinding, semiconductor stage positioning, and high-resolution servo motor feedback applications requiring sub-arc-minute angular measurement.
