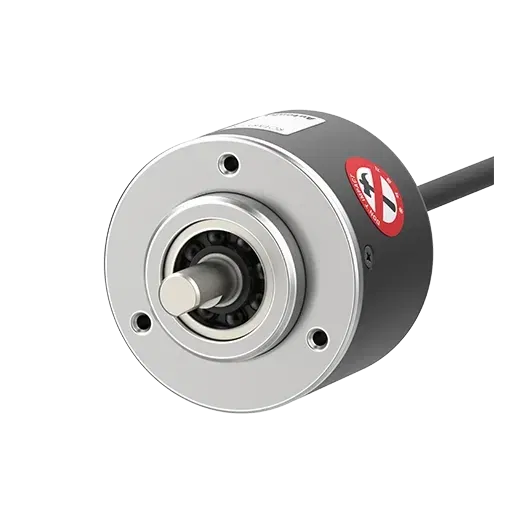

E50S8-1000-3-T-1 - 50 mm Incremental Rotary Encoders (Shaft Type)
Incremental Rotary Encoder
- SKU:
- E50S8-1000-3-T-1
- Category:
- Proximity Sensors
- Brand:
$216.94
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 363g(approx. 275g)
- Resolution
- 1000PPR
- Accessories
- 8mm coupling, Bracket
- Output phase
- A, B, Z
- Power voltage
- 5-24VDC (=)
- Control output
- Totem pole
- Connection type
- Axial cable type
- Starting torque
- Max. 70.cm(max. 0.00686N.m)
- Protection structure
- IP50(IEC standard)
- Shaft outer diameter
- 8mm
- Max. response frequency
- 300kHz
- Max. allowable revolution
- 500rpm
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 90% RH
- Environment_Ambient temperature
- 10 to 70 storage: -25 to 85
Description
The E50S8-1000-3-T-1 is a 50 mm shaft-type incremental rotary encoder with 1000 PPR resolution, 8 mm shaft, totem-pole output, and 12�24V DC operation. The totem-pole (push-pull) output provides both sourcing and sinking capability without external pull-up resistors, simplifying interface wiring with various PLC and motion controller input types. Suited for speed measurement, length measurement, and position feedback on mid-size motors and actuators.
